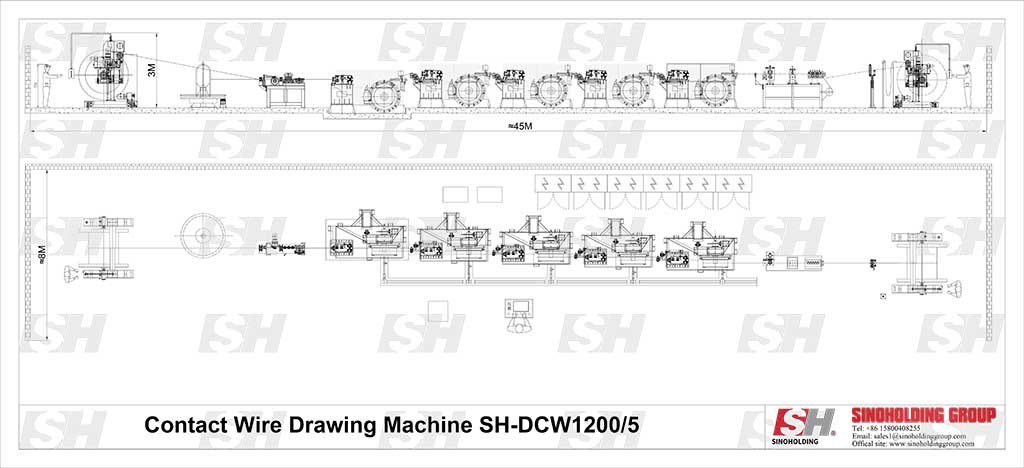

  • DIMENSIONAL SHEET
  • GALLERY & MULTIMEDIA

  • I. Introduction

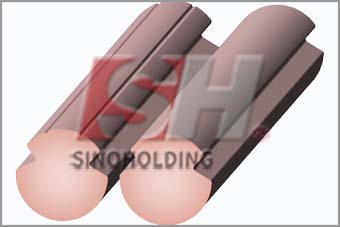

    Contact Wire Drawing Machine is used for producing contact wires for railways and trams of 60-150 mm2 in section by using material of round copper rod orsemi-finished contact wire extruded from extruder. It can draw copper, copper-silver alloy and copper-magnesium alloy contact wires.


    II. Equipment major components











    III. Main technical parameters

    Type

    SH-DCW1200/5

    Inlet diameter（mm）

    18.0-35.0

    Outlet section area (mm2)

    60.0-150.0

    Drawing capstan diameter (mm)

    1200.0

    Extension rate (%)

    10-47

    Drawing speed (m/min)

    30.0-60.0

    Take-up reel size (mm)

    2000.0





    Related suggestion：Railway Contact Wires / Load-Bearing Cables
