Slip Type Heavy-duty Cu Rod Breakdown Machine with Annealer
  • FEATURES

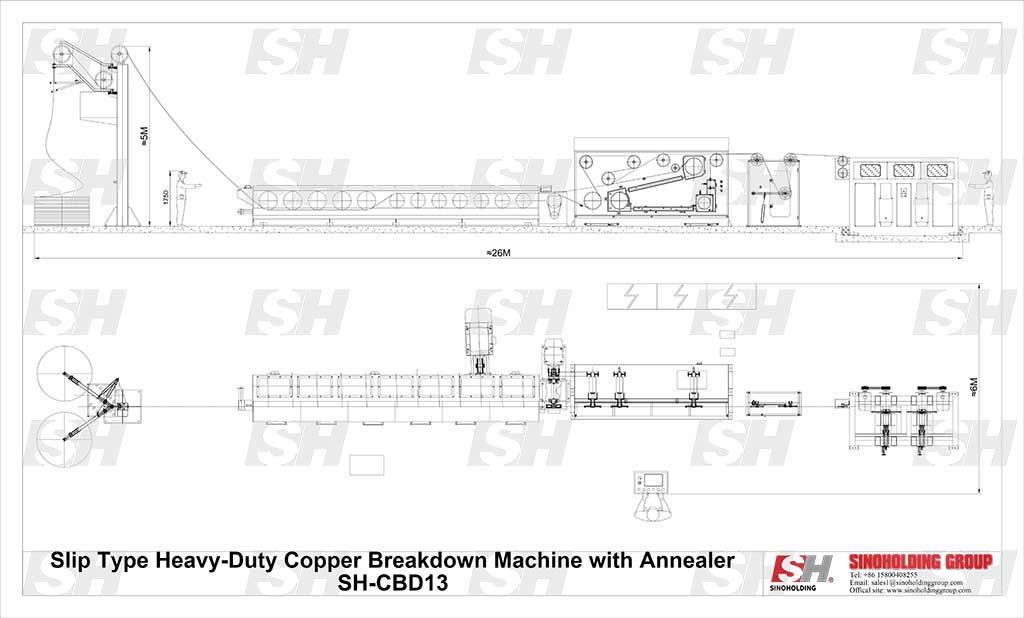

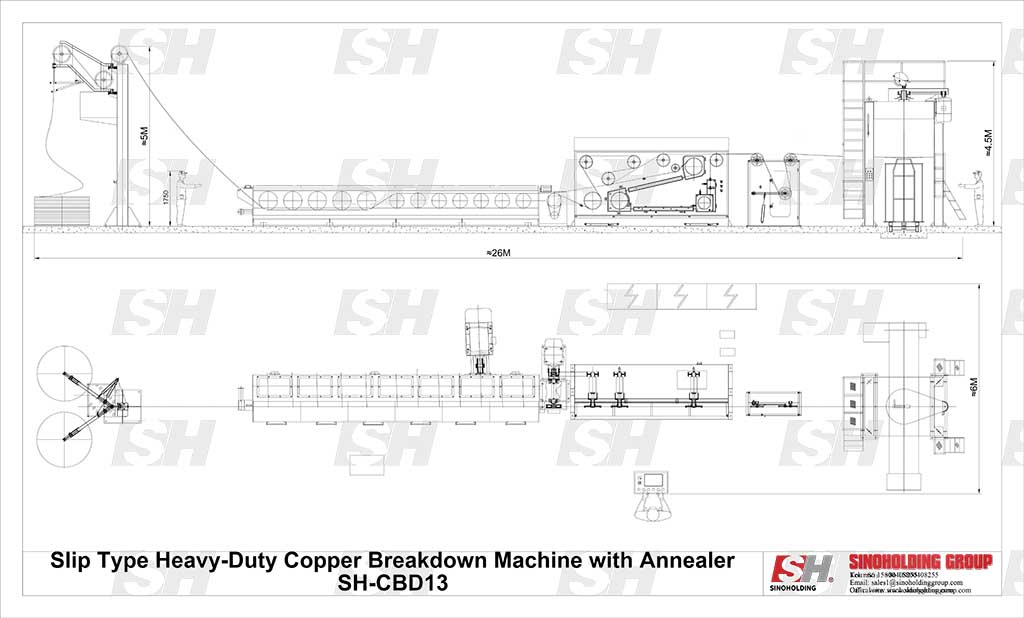

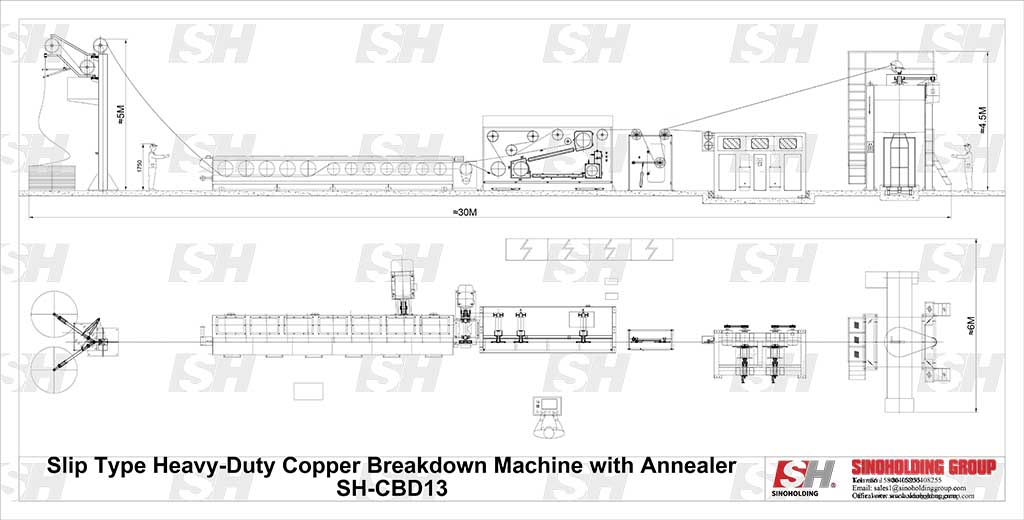

  • DIMENSIONAL SHEET
  • GALLERY & MULTIMEDIA

  • I. Introduction

    Slip Type Heavy-Duty Copper Breakdown Machine with Annealer is used to draw copper rod from 8 mm to 1.2~4.0 mm, which can be continuous annealed before being coiled by the dual take-up device or down coiler.


    II. Equipment major components





















    III. Main technl parameters

    Description

    Specification

    SH-CBD13

    SH-CBD11

    SH-CBD9

    SH-CBD7

    Material

    Low oxygen or oxygen-free copper rods

    Max. inlet diameter (mm)

    8

    Outlet range (mm)

    1.2-4.0

    1.6-3.5

    2.0-3.5

    2.5-3.5

    Max. mechanical speed (m/min)

    1500

    1500

    1500

    1200

    Max. No. of die

    13

    11

    9

    7

    Outer diameter of suitable die(mm)

    55

    Mechanical elongation

    26%-50%

    Drawing capstan diameter(mm)

    400&500

    Haul-off Capstan diameter(mm)

    400

    Motor power for drawing capstan(KW)

    AC220

    AC200

    AC160

    AC110

    Motor power for haul-off capstan(KW)

    AC5.5

    Motor power for lubricant pump(KW)

    AC 1.5

    Motor power for rotary die(KW)

    AC 0.55





    Related suggestion： Copper WiresRailway Contact Wires / Load-Bearing Cables35kv Medium Voltage Cable (Copper Core Wire)
