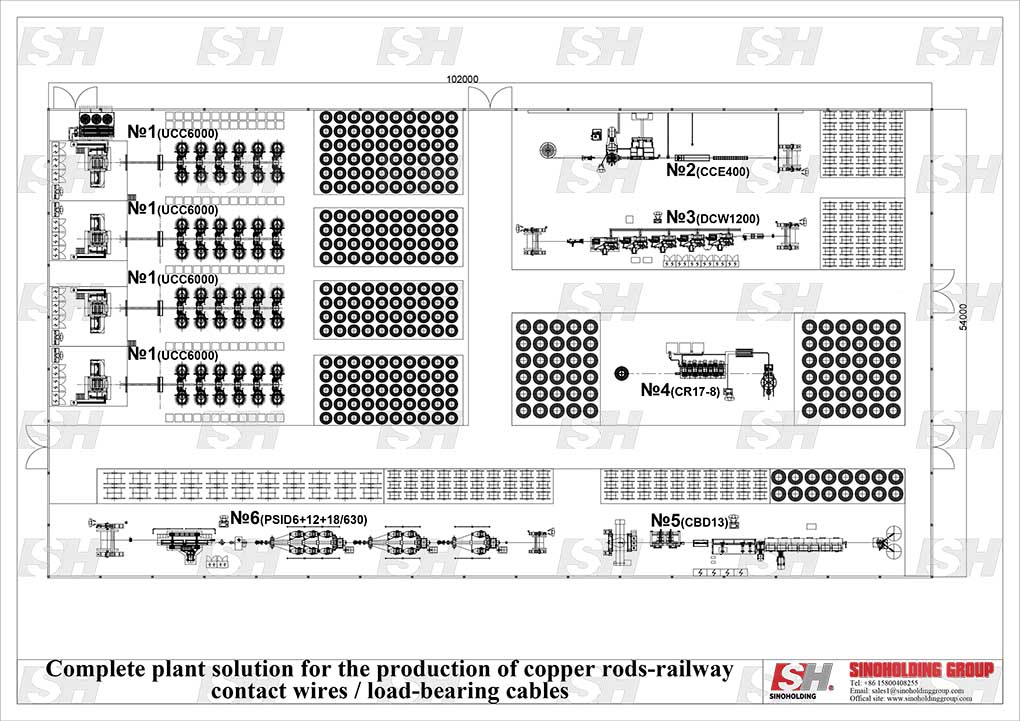

1 Complete plant solution for the production of copper rods-railway contact wires

NO.1 Upward Continuous Oxygen-free Copper Rod Casting Machine (SH-UCC6000*4 SETS)

Upward Continuous Oxygen-free Copper Rod Casting Machine (SH-UCC6000*4 SETS) uses electrolytic copper (Cathode) as raw materials to produce 20-30MM oxygen-free copper rods.

NO.2  Continuous Extrusion Machine (SH-CCE400)

Continuous Extrusion Machine (SH-CCE400) uses 20MM oxygen-free copper rods and extrudes semi-finished contact wires.

NO.3 Contact Wire Drawing Machine (SH-DCW1200)

Contact Wire Drawing Machine (SH-DCW1200) is used for producing contact wires for railways and trams of 80-150 mm² in section by using material of semi-finished contact wire extruded from continuous extrusion machine.

2 Complete plant solution for the production of copper rods-load-bearing cables

NO.1 Upward Continuous Oxygen-free Copper Rod Casting Machine (SH-UCC6000*2 SETS)

Upward Continuous Oxygen-free Copper Rod Casting Machine (SH-UCC6000*2 SETS) uses scrap copper or electrolytic copper (Cathode) as raw materials to produce 17MM oxygen-free copper rods.

NO.4  Copper Rod Cold Rolling Mill(SH-CR17-8)

Copper rod cold rolling mill(SH-CR17-8)uses 17MM oxygen-free copper rods as raw materials and rolls them into 8MM copper rods.

NO.5 Slip Type Heavy-Duty Copper Breakdown Machine with Annealer (SH-CBD13)

Slip type heavy-duty copper breakdownmachine with annealer (SH-CBD13)

uses the 8MM copper rod rolled by the cold rolling mill to produce 1.2-4.0MM hard copper wire (without annealing) or soft copper wire (with annealing).

NO.6  Planetary Stranding Machine With Independent Motors(SH-PSID6+12+18/630)

Planetary stranding machine with independent motors (SH-PSID6+12+18/630) strands the 1.2-4.0MM hard copper wire (without annealing) or soft copper wire (with annealing) produced by slip type heavy-duty copper breakdownmachine with annealer into a load-bearing cable.
