Slip Type Heavy-duty Aluminium Wire Breakdown Machine
  • BRIEF INTRODUCTION
  • GALLERY
  • MULTIMEDIA
  • I. Introduction

    Slip Type Heavy-duty Aluminium Rod Breakdown Machine is used to draw aluminium rod from 9.5 mm to 1.5~4.5 mm, being coiled by the dual take-up device.

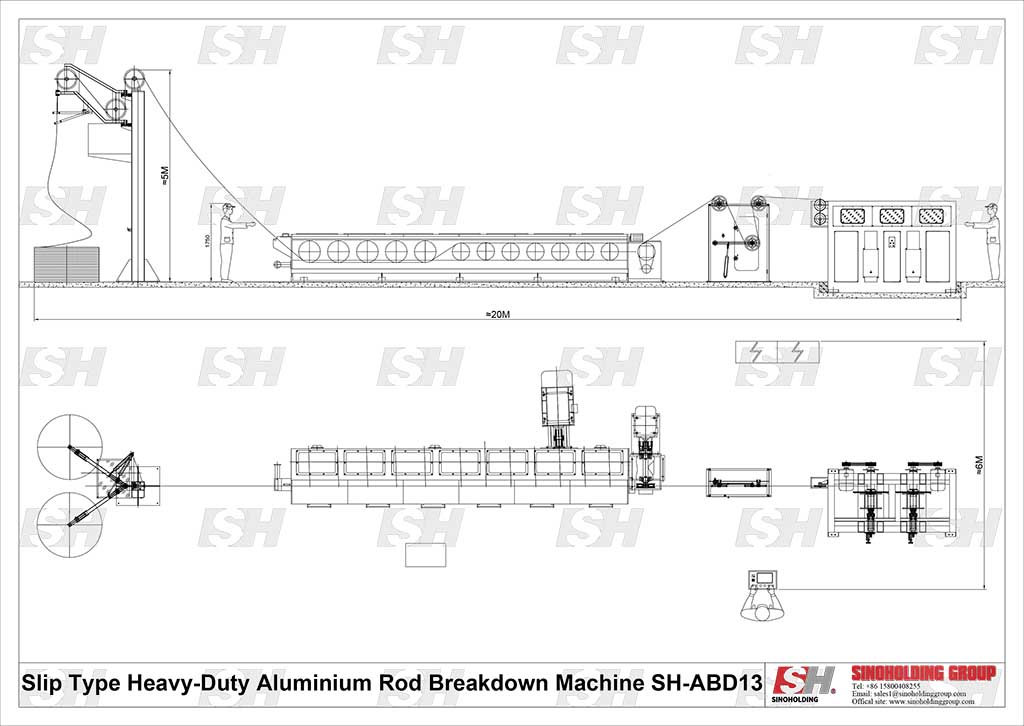

    II. Equipment major components












    III. Main technical parameters

    Description

    Specification

    SH-ABD13

    SH-ABD11

    SH-ABD9

    SH-ABD7

    Material

    Aluminium or aluminium alloys

    Max. Inlet (mm)

    9.5

    Outlet range(mm)

    1.5-4.5

    1.8-4.5

    2.5-3.5

    3.5

    Max. Mechanical speed m/min

    1500

    1500

    1300

    1200

    Max. No. of die

    13

    11

    9

    7

    Outer diameter of suitable

    die(mm)

    55

    Mechanical elongation

    26%-50%

    Drawing capstan diameter(mm)

    400&500

    Haul-off Capstan diameter(mm)

    400

    Motor power for drawing capstan(KW)

    AC220

    AC200

    AC160

    AC110

    Motor power for haul-off capstan(KW)

    AC 5.5

    Motor power for lubricant pump(KW)

    AC 1.5

    Motor power for rotary die(KW)

    AC 0.55
