Medium Drawing Machine with Annealer
  • FEATURES

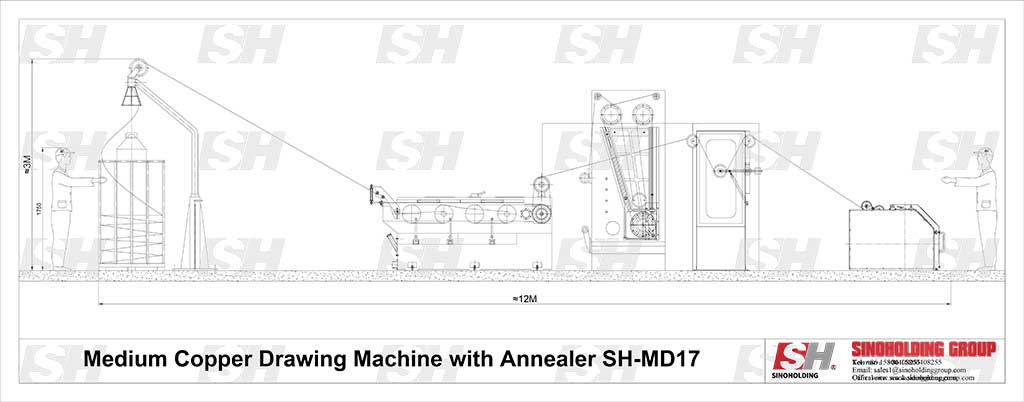

  • DIMENSIONAL SHEET
  • GALLERY & MULTIMEDIA

  • I. Introduction

    Medium Copper Drawing Machine with Annealer is used for drawing and annealing copper wire from 2.5~3.5mm to 0.4~1.6mm.


    II. Equipment major components












    III. Main technical parameters

    Model

    SH-MD17A

    SH-MD17B

    Intel wire dia.(mm)

    Φ2.5-3.5

    Φ2.5-3.2

    Outlet wire dia. (mm)

    Φ0.4-1.6

    Φ0.4-1.2

    Max.Linear speed(mm)

    1500

    1200

    Max.die No.

    17

    17

    Drawing Capstan dia.(mm)

    Φ250

    Φ250

    Main motor(kw)

    55

    37

    Traversing type

    PND500/630

    PND500/630

    Brake

    Pneumatic brake

    Pneumatic brake
