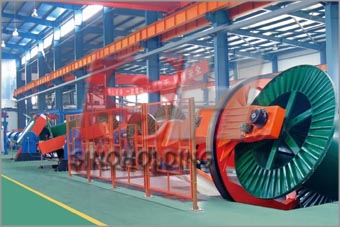

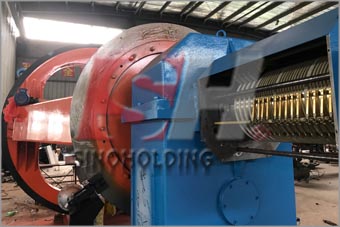

Drum Twist Laying-up Machine
  • BRIEF INTRODUCTION
  • GALLERY
  • MULTIMEDIA
  • I. Introduction

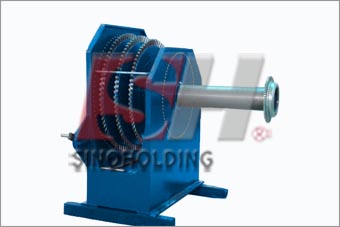

    Drum Twist Laying-up Machine is mainly used for stranding and laying-up the core wires of large section and long electric cables, and for round and sector shaped conductors. It can also wrap and shield core wires withsteel tape,wrap non-metallic tape and armor and shield core wires with steel/copper wire after laying-up. Furthermore, it can be used to armor and shield core wires with steel/copper wire separately as well.

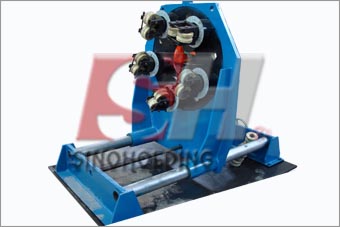

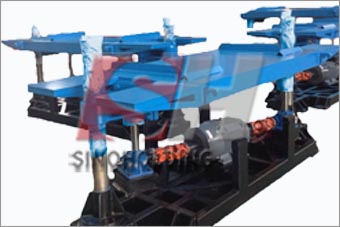

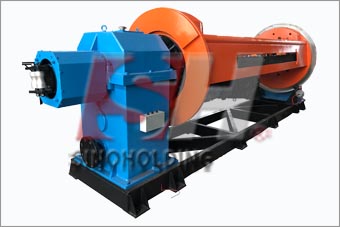

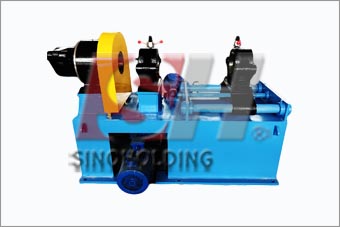

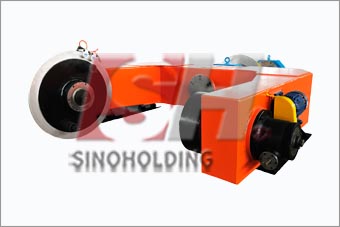

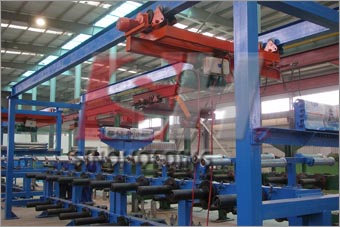

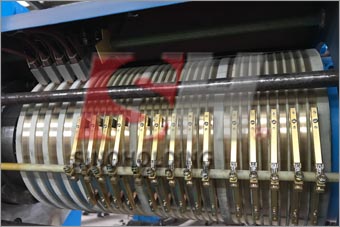

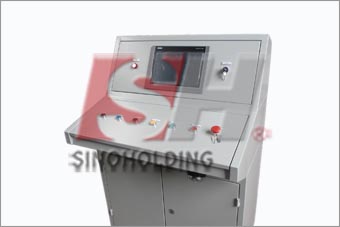

    II.Equipment major components



























































    III. Techinical parameters

    Model

    SH-DTLU2000

    SH-DTLU2500

    SH-DTLU3150

    SH-DTLU3500

    SH-DTLU4200

    Max. Outlet diameter

    Ф100ММ

    Ф120ММ

    Ф130ММ

    Ф130ММ

    Ф150ММ

    Max. Rotation speed of drum twister

    50 rpm

    40 rpm

    30 rpm

    30 rpm

    25 rpm

    Max. Tractionlinear speed

    50 m/min

    50 m/min

    50 m/min

    40 m/min

    40 m/min

    Center pay-off size

    PN2000

    PN2500

    PN3150

    PN3500

    PN4200

    Pay-off size

    PN1250

    PN1600

    PN2000

    PN2500

    PN3150

    Take-up size

    PN2000

    PN2500

    PN3150

    PN3500

    PN4200

    Steel wire pay-off size

    PND500

    PND500

    PND630

    PND630

    PND630

    Max. Hauling force

    3000KG

    3000KG

    5000KG

    6000KG

    6000KG
