Tubular Stranding Machine
  • BRIEF INTRODUCTION
  • GALLERY
  • MULTIMEDIA
  • I. Introduction

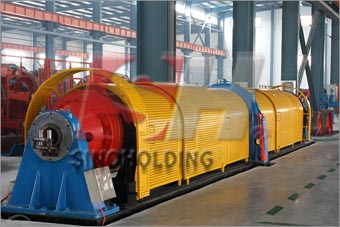

    Tubular Stranding Machine is mainly used for stranding copper wires, aluminium wires, steel wire ropes and ACSR wires. Due to the bearing type structure, the stranding body of themachine can run at high speed for a long time.

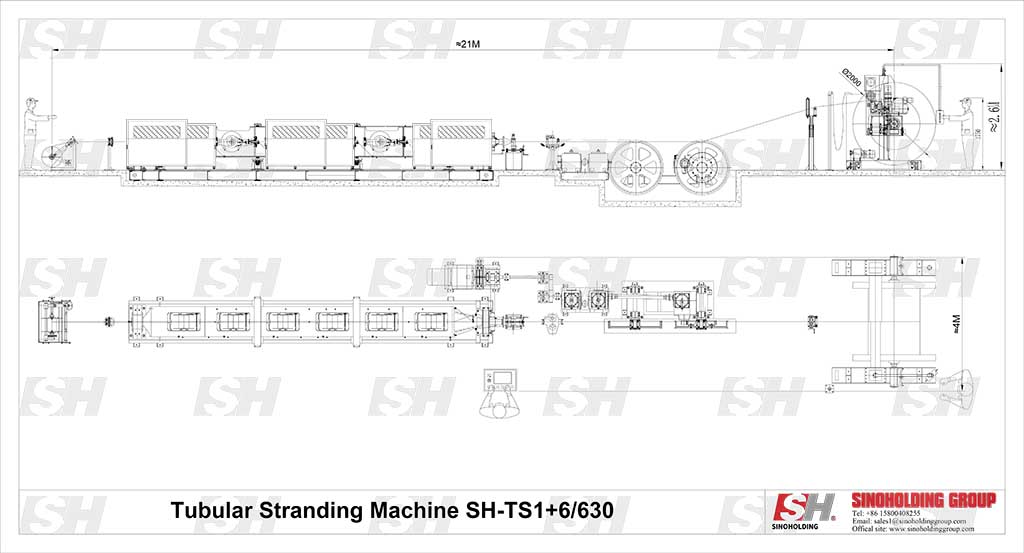

    II. Equipment major components












    III. Main technical parameters

    Model

    SH-TS400

    SH-TS500

    SH-TS630

    Single wire dia. (mm)

    Copper

    1.3-4.0

    1.5-5.0

    1.5-5.0

    Aluminum

    1.8-4.0

    1.8-5.0

    1.8-5.0

    Steel wire

    1.3-4.0

    1.5-5.0

    1.5-5.0

    Max. Rotating speed  (rpm)

    6B

    700

    550

    500

    Max. Output (m/min)

    6B

    200

    165

    130

    Max.Stranding dia. (mm)

    6B

    12

    15

    15
