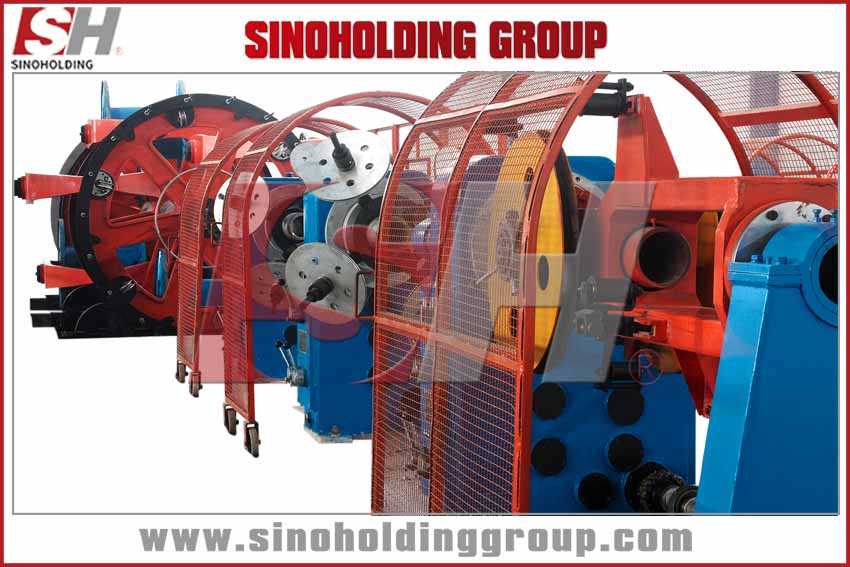

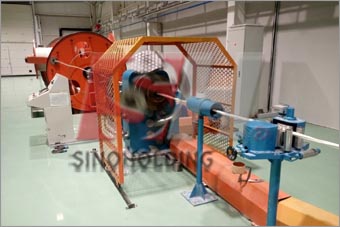

Cradle Type Laying-up Machine
  • BRIEF INTRODUCTION
  • GALLERY
  • MULTIMEDIA
  • I. Introduction

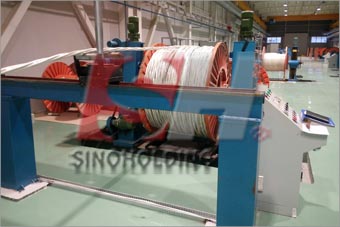

    Cradle Type Laying-up Machine is used for stranding multiple insulated core wires, and canwrap and shield core wires withsteel tape orwrap non-metallic tape after laying-up. This production line can also be used to laying-up fan-shaped core wires and laying-up divided conductor wires.


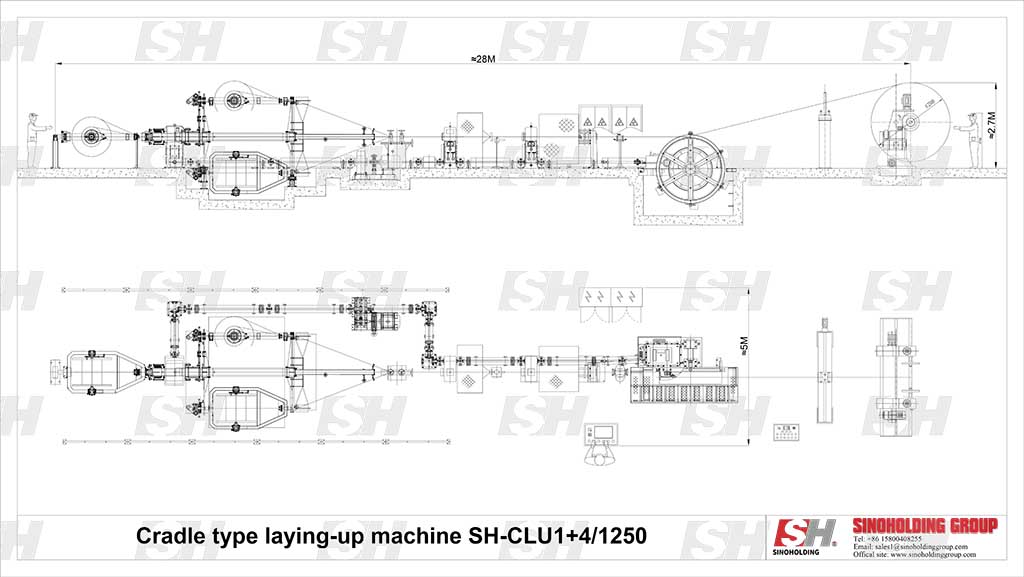

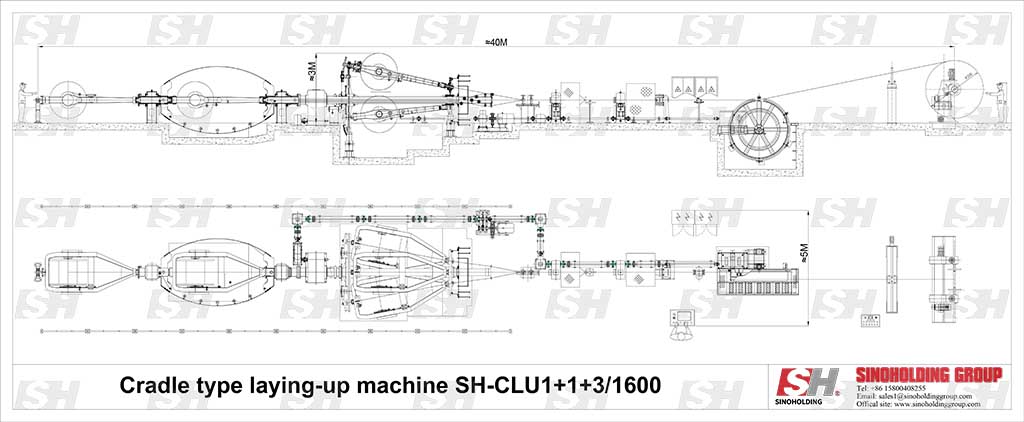

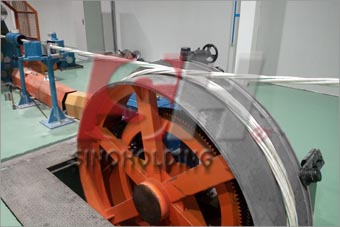

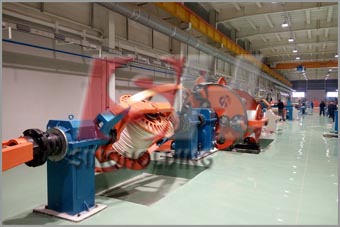

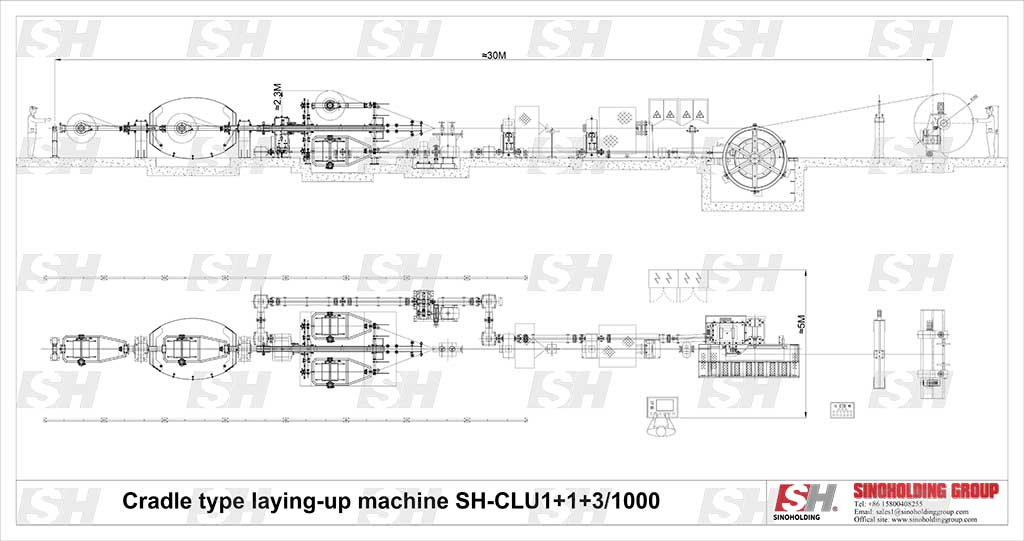

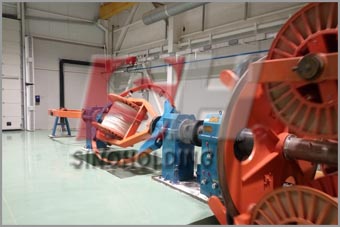

    II.Equipment major components





















    III. Techinical parameters

    Model

    SH-CLU1+1+3/1250

    SH-CLU1+1+3/1600

    SH-CLU1+1+3/2000

    SH-CLU1+6/1000

    SH-CLU1+6/1250

    Stranding single wire diameter

    Ф625mm

    Ф10-Ф35mm

    Ф10-Ф35mm

    Ф520mm

    Ф625mm

    Max. Laying-up diameter

    Ф75mm

    Ф80mm

    Ф80mm

    Ф60mm

    Ф75mm

    Max.Rotating speed

    30rpm

    15rpm

    10rpm

    40rpm

    25rpm

    Max. tractionlinear speed

    40m/min

    30m/min

    30m/min

    40m/min

    40m/min

    Payoff reel size

    PN1250

    PN1600

    PN2000

    PN1000

    PN1250

    Take-up reel size

    PN2500

    PN3150

    PN3150

    PN2000

    PN2500

    Traction wheel diameter

    Ф2000mm

    Ф2500mm

    Ф2500mm

    Ф1600mm

    Ф2000mm

    Main motor power

    55kw(AC)

    55kw(AC)

    55kw(AC)

    55kw(AC)

    55kw(AC)
